london_tube_lines

London Underground and DLR line segments

A topologically-encoded representation of select London Underground rail lines, derived from OpenStreetMap data. These 394 LineString geometries, encoded using 406 arcs, depict transport paths between stations with stations marked as nodes along the lines. Originally transformed from a GeoJSON intermediary tfl_lines.json into TopoJSON format, this network configuration reflects the system as of February 4, 2018, and may not incorporate subsequent modifications or expansions.

TopoJSON 80 KB 2 gallery examples 2 examples

Explore

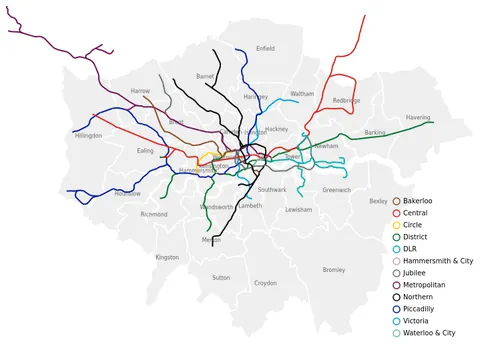

Vega-Lite · geoshape mark · mercator projectionVega-Lite · geoshape mark · mercator projection

Open This Chart in the Vega Editor

Examples

Vega and Vega-Lite examples open in the Editor with this dataset loaded. Altair examples link to their Python source.

Provenance

Source

OpenStreetMap Data (processed by oobrien/vis)

License

Open Data Commons Open Database License (ODbL) (ODbL-1.0)

File

data/londonTubeLines.json · 80,097 bytes · View on GitHub

Use This Dataset

https://cdn.jsdelivr.net/npm/vega-datasets@3/data/londonTubeLines.json

"data": {
  "url": "https://cdn.jsdelivr.net/npm/vega-datasets@3/data/londonTubeLines.json",
  "format": {"type": "topojson", "feature": "line"}
}

"data": [{
  "name": "london_tube_lines",
  "url": "https://cdn.jsdelivr.net/npm/vega-datasets@3/data/londonTubeLines.json",
  "format": {"type": "topojson", "feature": "line"}
}]

from altair.datasets import data

url = data.london_tube_lines.url

import data from 'vega-datasets';

const url = data['londonTubeLines.json'].url;

Download londonTubeLines.json

At a Glance

Format: TopoJSON
Size: 80 KB
Source: OpenStreetMap Data (processed by oobrien/vis)
License: Share-alike
Release: v3.2.1

Used in the Galleries

Vega-Lite1Vega0Altair1
